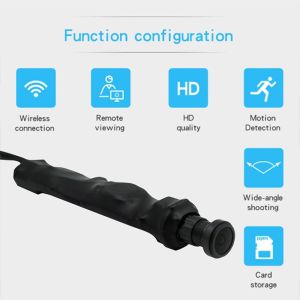

▶ 3MP High-Definition Resolution for Clarity: This 3MP mini bullet-shaped WiFi camera captures crisp video for face recognition, license plate recognition, and small object monitoring.
▶ Advanced H.265 Video Compression: H.265 reduces bandwidth consumption and storage costs by up to 50%, making this camera ideal for large-scale deployments in multi-store retail, corporate offices, or property management projects.
▶ Stable 2.4GHz WiFi Connection: Built-in 2.4GHz WiFi provides stable remote monitoring without additional cabling, ideal for small business owners and installers seeking flexible deployment.
▶ Two-Way Voice Communication: Integrated microphone and speaker support two-way voice communication.
▶ TF Card and Cloud Storage Options: Supports up to 128GB TF cards and optional cloud storage.
| Sensor | 1/2.9" |
|---|---|
| Pixel | 3MP |
| Compression Format | H.264/H.265 |
| Frame Rate | 1920×1080@25fps |
| Audio | Support 2-way Audio |
| Working Voltage | DC 12V |
| Product Size | 14mm×70mm |
| Working Temperature | <70°C |
| Power Consumption | 0.25W |
| Model | HC-W3MPXJT |
| Storage | Support Cloud Storage/TF Card( Max 128GB) |
| Type | WIFI Network Camera |
| Lens Specifications | F.NO: 3.0mm Focal length: 2.2 Distortion: <-1.0% Component: 4E+IR |
| FOV | 160° |
| Chip Type | CMOS |
Machine Vision & AI Systems:Ideal for barcode recognition, object detection, robotics platforms, and small AI boxes.
Kiosk & Self-Service Terminals:Used in ATM machines, smart access control, vending machines, ticketing systems.
Medical equipment and hospital systems
Industrial automation and robotics
Security surveillance systems
Flame monitoring in power plants
Law enforcement equipment
FAQ
Q: Can I purchase samples?
A: Small batch samples of 1–50pcs are supported.
Q: Does this camera run on Linux without installation?
A: Yes. It is fully compliant with UVC standards and plug-and-play.
Q: Can I customize the lens, field of view, or cable?
A: Yes. Lenses with different fields of view and cable lengths can be customized.
Q: What is the lead time?
A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
- Embedded cameras for face/object/barcode recognition
- Industrial cameras for automated inspection and measurement
- Security vision cameras for surveillance and monitoring
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
